NE Meters
National Energy: Proven Reliability Since 1954
National Energy’s positive displacement meters are engineered for precision and reliability, ensuring a trouble-free service life with minimal maintenance. Their unique construction results in low pressure drop for a wide range of liquids, delivering superior performance while reducing the demand on system pumps.
The exclusive metering element design eliminates inaccuracies, minimizes loads on bearings, and functions seamlessly in both forward and reverse flow. Our tri-rotor meter design features a precision-machined housing in which three rotors operate in synchronized harmony, measuring fuel with no metal-to-metal contact, thus ensuring a lifetime of sustained measurement accuracy.
Key Features of M25 Meter Elements for Hotspots
The design allows the force exerted by the fluid flowing through the meter to act at right angles to the faces of the displacement rotors, keeping the rotor shafts in a horizontal plane. This configuration eliminates axial thrust, reducing wear between the rotors and bearing plates, and ultimately providing a lifetime of precise measurement.
M-5® meters are used in refined petroleum products, aviation fuels, LPG, agricultural chemicals, paints and coatings, foods and beverages, petrochemicals, pharmaceuticals, cosmetics, printing inks, textiles
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation and jet fuel | Ni-Resist* |
| 3 | Liquid sugars, sweeteners, syrups, vegetable oils | Ni-Resist* |
| 4 | Treated waters and solvents where no red metals are allowed | Carbon |
| 8 | Acid pH liquids including: Nitric acid, phosphoric acid, glacial acetic acids, citric juices, vinegar | Carbon** |
| 14 | Crude oil | Ni-Resist |
| 16 | General solvents | Carbon |
*carbon bearings are standard on some meter sizes of this class, please consult factory.
*Teflon bearings optional on some meter sizes, please consult factory.

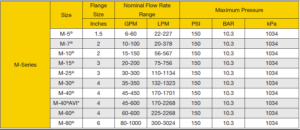

M-5® Specs
- Rating: 60 GPM (227 LPM), 150 psi (10.3 bar, 1034 kPa)
- Flange: 1-1/2″, 2″
- Meter Construction: Aluminum or Stainless Steel
- Seals: Buna/Viton®/EPDM as noted by catalog number
- Maximum Pressure: 150psi (as listed by catalog number)
- Temperature: -40° to 185° F
M-15® meters are used in refined petroleum products, aviation fuels, agricultural chemicals, paints and coatings, foods and beverages, petrochemicals, pharmaceuticals, cosmetics, printing inks, textiles
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation and jet fuel | Ni-Resist* |
| 3 | Liquid sugars, sweeteners, syrups, vegetable oils | Ni-Resist* |
| 4 | Treated waters and solvents where no red metals are allowed | Carbon |
| 14 | Crude oil | Ni-Resist |
| 16 | General solvents | Carbon |
*(carbon bearings are standard on some meter sizes of this class, please consult factory)
M-15® Specs
- Rating: 200 GPM (756 LPM), 150 psi (10.3 bar, 1034 kPa)
- Flange: 1.5″, 2″
- Meter Construction: Aluminum or Stainless Steel
- Seals: Buna/Viton® as noted by catalog number
- Maximum Pressure: 150psi (as listed by catalog number)
- Temperature: -40° to 185° F
- Bearing Material Recommended: Ni-Resist (carbon bearings are standard on some meter sizes of this class, please consult factory)
M-25® Meters for metering refined petroleum products such as leaded and unleaded gasoline, aviation fuels, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze) at rated capacity.
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation and jet fuel | Ni-Resist* |
*(carbon bearings are standard on some meter sizes of this class, please consult factory)
M-25® Specs
- Rating: 300 GPM (1134 LPM), 150 psi (10.3 bar, 1034 kPa)
- Flange: 3″
- Meter Construction: Aluminum
- Seals: Buna/Viton® as noted by catalog number
- Maximum Pressure: 150psi (as listed by catalog number)
- Temperature: -40° to 185° F
M-30® meters are used in refined petroleum products, aviation fuels, agricultural chemicals, paints and coatings, foods and beverages, petrochemicals, pharmaceuticals, cosmetics, printing inks, textiles
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation and jet fuel | Ni-Resist* |
| 3 | Liquid sugars, sweeteners, syrups, vegetable oils | Ni-Resist* |
| 4 | Treated waters and solvents where no red metals are allowed | Carbon |
| 14 | Crude oil | Ni-Resist |
| 16 | General solvents | Carbon |
*(carbon bearings are standard on some meter sizes of this class, please consult factory)
M-30® Specs
- Rating: 350 GPM (1323 LPM), 150 psi (10.3 bar, 1034 kPa)
- Flange: 4″
- Meter Construction: Aluminum
- Seals: Buna/Viton® as noted by catalog number
- Maximum Pressure: 150psi (as listed by catalog number)
- Temperature: -40° to 185° F
- Bearing Material Recommended: Ni-Resist (carbon bearings are standard on some meter sizes of this class, please consult factory)
M-40® Meters for metering refined petroleum products such as leaded and unleaded gasoline, aviation fuels, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze) at rated capacity.
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation and jet fuel | Ni-Resist* |
*(carbon bearings are standard on some meter sizes of this class, please consult factory)
M-40® Specs
- Rating: 450 GPM (1701 LPM), 150 psi (10.3 bar, 1034 kPa)
- Flange: 4″
- Meter Construction: Aluminum
- Seals: Buna/Viton® as noted by catalog number
- Maximum Pressure: 150psi (as listed by catalog number)
- Temperature: -40° to 185° F
M-40® AVI Meters for metering all classes of aviation fuels.
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 2 | Aviation fuels including jet A, jet A-1, avgas | Ni-Resist* |
*(carbon bearings are standard on some meter sizes of this class, please consult factory)
M-40® AVI Specs
- Rating: 600 GPM (2268 LPM), 275 psi (19 bar, 1900 kPa);
- Flange: 4″
- Meter Construction: Aluminum
- Seals: Buna/Viton® as noted by catalog number
- Maximum Pressure: 275 psi (as listed by catalog number)
- Temperature: -40° to 185° F
M-60® Meters for metering refined petroleum products such as leaded and unleaded gasoline, aviation fuels, fuel oils, diesel fuel, kerosene, ethylene glycol (antifreeze), as well as crude oil.
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation and jet fuel | Ni-Resist* |
| 3 | Liquid sugars, sweeteners, syrups, vegetable oils | Ni-Resist* |
| 4 | Treated waters and solvents where no red metals are allowed | Carbon |
| 16 | Alternative fuels and solvents, Methanol, Xylene, Naptha, Acetone, MEK, MIBK, and Alcohols (including 200 proof ethanol) | Ni-Resist |
*(carbon bearings are standard on some meter sizes of this class, please consult factory)
M-60® Specs
- Rating: 600 GPM (2268 LPM), 150 psi (10.3 bar, 1034 kPa)
- Flange: 4″
- Meter Construction: Aluminum
- Seals: Buna/Viton® as noted by catalog number
- Maximum Pressure: 275 psi (as listed by catalog number)
- Temperature: -40° to 185° F
M-80® Meters for metering all classes of aviation fuels.
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 2 | Aviation fuels including jet A, jet A-1, avgas | Ni-Resist* |
*(carbon bearings are standard on some meter sizes of this class, please consult factory)
M-80® Specs
- Rating:
- (4″) – 600 GPM (2268 LPM), 275 psi (19 bar, 1900 kPa);
- (6″) – 1000 GPM (38 LPM), 275 psi (19 bar, 1900 kPa)
- Flange: 4″, 6″
- Meter Construction: Aluminum
- Seals: Buna/Viton® as noted by catalog number
- Maximum Pressure: 275 psi (as listed by catalog number)
- Temperature: -40° to 185° F
